SiT6098EBB Evaluation Board

EVB for 1-Hz to 2.5-MHz Oscillators and TCXOs in 1508 CSP

sit6098ebb

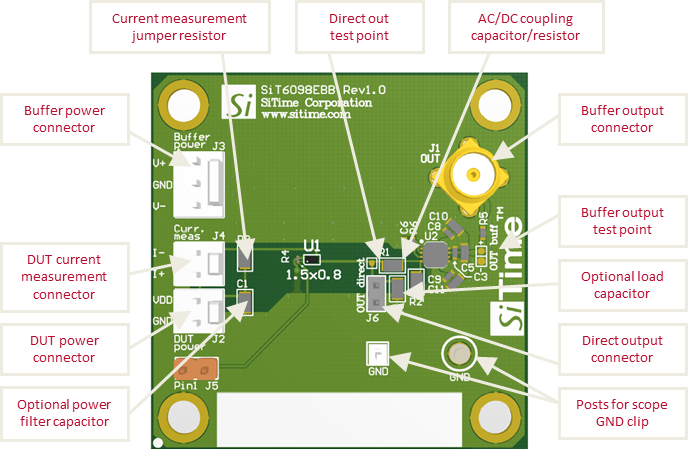

The SiT6098EBB evaluation board (EVB) provides the ability to evaluate the functionality of SiTime’s32-kHz 1508 oscillatorsand TCXOs on a simple board that makes it easy to power up the oscillator and observe the output buffered through an operational amplifier. The analog buffer isolates the device from the significant loading, which is important for performing the best waveform and current measurements.

This board supports multiple configurations for evaluating AC and DC coupled output modes of the SiTime oscillator. In addition, theSiT6098EBBprovides the ability to add additional load capacitance and to bypass the output buffer.

SiT6098EBB User Manual

Contact Salesto order evaluation boards

Supported Devices

The SiT6098EBBevaluation board supports 1-Hz to 2.5-MHz oscillators in a 1.5 x 0.8 mm CSP package including the following products:

SiT1532, µPower Oscillator,32.768 kHz,1.5 x 0.8 CSP

SiT1572, Low-Jitter Oscillator,32.768 kHz,1.5 x 0.8 CSP

SiT1552, ±5 to±20-ppm TCXO,32.768 kHz,1.5 x 0.8 CSP

SiT1566, ±3 to±5-ppm TCXO,32.768 kHz,1.5 x 0.8 CSP

SiT1568, ±5-ppm TCXO with calibration,32.768 kHz,1.5 x 0.8 CSP

SiT1534, µPower Oscillator,1 Hz to 32.768 kHz,1.5 x 0.8 CSP*

SiT1569, Low-Power Oscillator,1 Hz to 462.5 kHz,1.5 x 0.8 CSP

SiT1576, Low-Jitter TCXO,1 Hz to 2.5 MHz,1.5 x 0.8 CSP

SiT1579, Low-Jitter Oscillator,1 Hz to 2.5 MHz,1.5 x 0.8 CSP

..................................

*SiT1534 is also available in a 2.0 x 1.2 package. See SiT6096EBB for 2012 support.
